Our Facilities
Built for Precision.
Designed for Scale.
Technical Details
Facility Specifications
Lot Area
5,443 sqm
Floor Area
4,500 sqm
Temperature Range
-22°C to +20°C
Chiller Temp
0°C to +5°C
Pallet Positions
6,809+
Racking System
Double Deep, 7 High
Loading Docks
12 Covered Docks
Loading Bay
335 sqm
Refrigeration
Ammonia System
Equipment Origin
European-Supplied
Backup Power
2× 500KVA Generators
Cooling
Inverter System
Energy
Solar Panel Ready
CCTV Retention
6-Month Storage
WMS
Cloud-Based System
Parking Area
830 sqm
Storage Environments
Cold Storage Chambers
13 total chambers across three temperature zones, each engineered for specific product categories and compliance requirements.
Freezer Rooms
13 Rooms-22°C to +20°C
- Double-deep racking, 7 high
- Optimized airflow for uniform freezing
- Suitable for meat, seafood, dairy, and frozen goods
- Ammonia-based refrigeration system
Chiller Room
1 Anteroom0°C to +5°C
- Controlled anteroom environment
- Ideal for fresh produce, dairy, and pharma
- Prevents temperature shock during transfer
- Precision inverter-controlled cooling
Blast Freezer
1 RoomRapid Pull-Down
- 2–3 ton capacity per cycle
- High-velocity airflow system
- Rapid core-temperature reduction
- HACCP-compliant food safety process
Dry Storage
1 RoomAmbient
- 174 pallet positions
- Ambient temperature controlled
- Ideal for non-perishables & packaging materials
- Integrated with WMS tracking

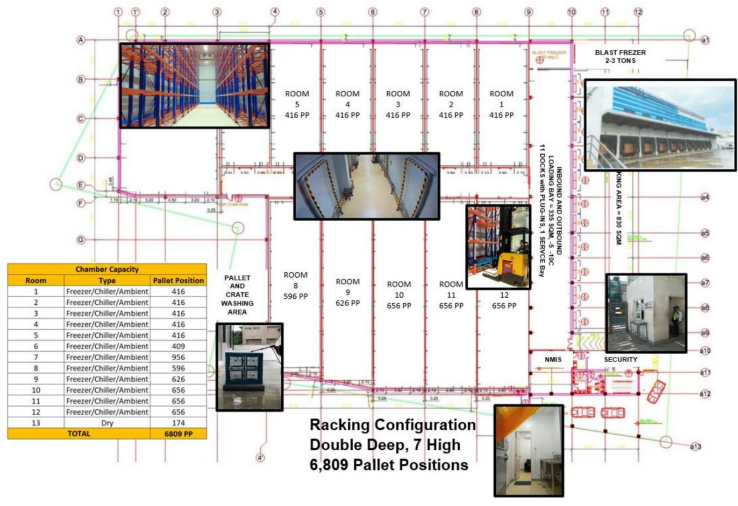

Cold Chamber Configuration
13 rooms totalling 6,809 pallet positions — double deep racking, 7 pallets high.
| Room | Type | Pallet Pos. |
|---|---|---|
| Room 1 | Freezer/Chiller/Ambient | 416 |
| Room 2 | Freezer/Chiller/Ambient | 416 |
| Room 3 | Freezer/Chiller/Ambient | 416 |
| Room 4 | Freezer/Chiller/Ambient | 416 |
| Room 5 | Freezer/Chiller/Ambient | 416 |
| Room 6 | Freezer/Chiller/Ambient | 409 |
| Room 7 | Freezer/Chiller/Ambient | 956 |
| Room 8 | Freezer/Chiller/Ambient | 596 |
| Room 9 | Freezer/Chiller/Ambient | 626 |
| Room 10 | Freezer/Chiller/Ambient | 656 |
| Room 11 | Freezer/Chiller/Ambient | 656 |
| Room 12 | Freezer/Chiller/Ambient | 656 |
| Room 13 | Dry | 174 |
| Total (13 rooms) | ||
Loading & Support Areas
Anteroom
0°C to +5°C
Loading Bay
335 sqm
Covered Docks
12
Parking Area
830 sqm
Infrastructure
Refrigeration & Power
Powered by MERALCO with ammonia refrigeration and full backup generation — designed for 24/7 uninterrupted cold chain operations.

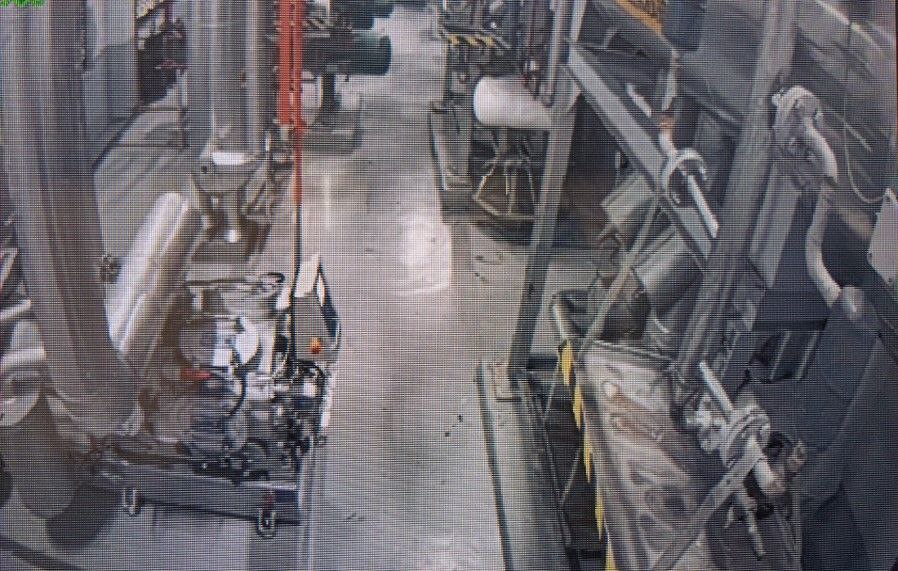

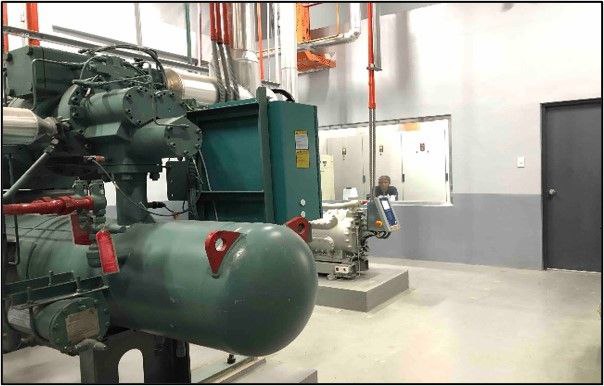

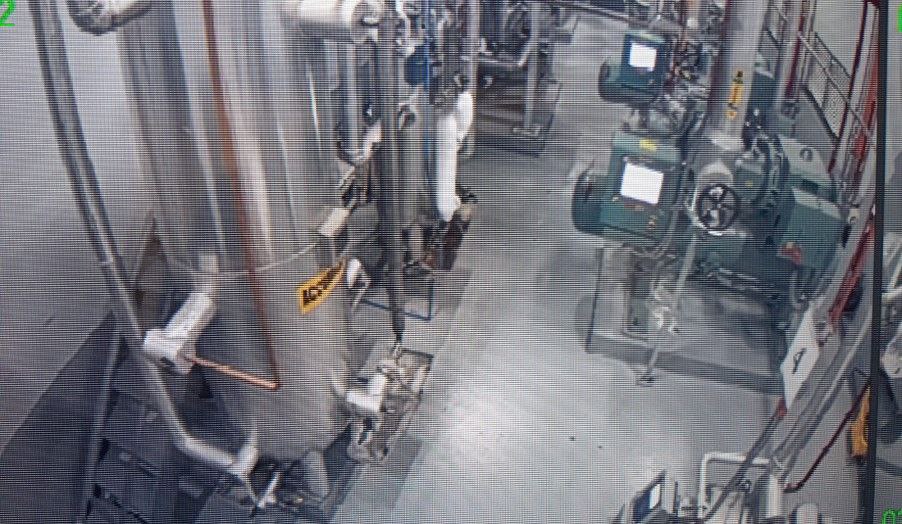

Machine Room
- Industrial-grade ammonia refrigeration
- European-sourced compressors & components
- Inverter-driven compressors for energy efficiency
- Redundant cooling circuits per chamber
- Centralized temperature monitoring & logging

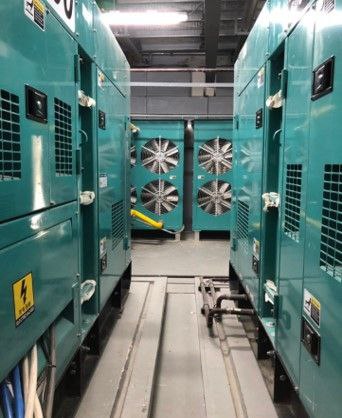

Generator Set
- 2× 500KVA diesel generator backup
- Automatic transfer switch (ATS)
- Solar panel infrastructure ready
- Uninterruptible power supply for critical systems
- Real-time power consumption monitoring

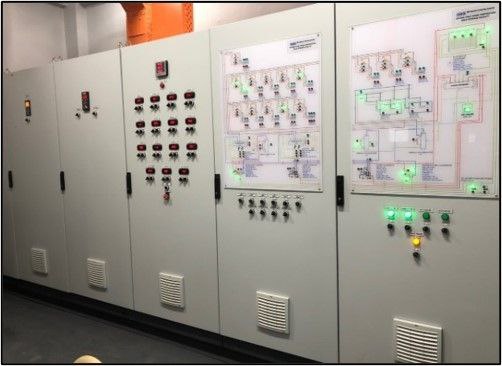

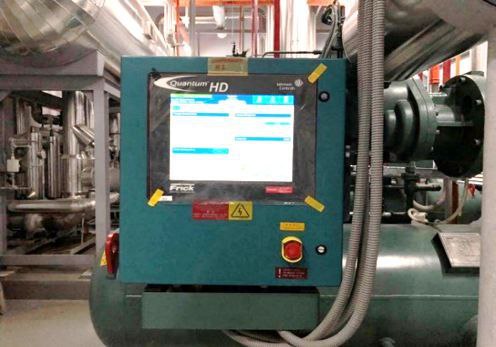

Ammonia Leak Detection & Temp Monitoring
- Automatic ammonia leak detection system
- Centralized temperature logging
- Alarm system for temperature deviations
- Remote monitoring capability

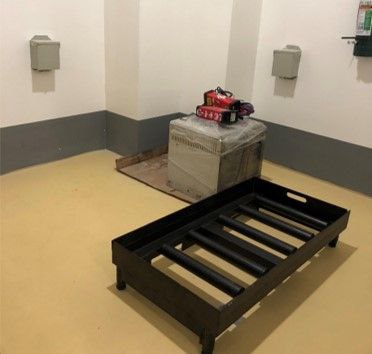

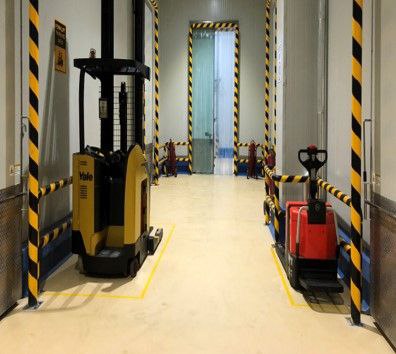

Battery Charging / MHE Equipment
- Dedicated battery charging area
- Reach truck and forklift support
- Solar panel infrastructure provision
- Powered by MERALCO grid connection
Support Spaces
Office & Support Facilities
5,443 sqm lot area, 4,500 sqm floor area — including purpose-built offices and convertible pharmaceutical/VAS spaces.
Ground Floor

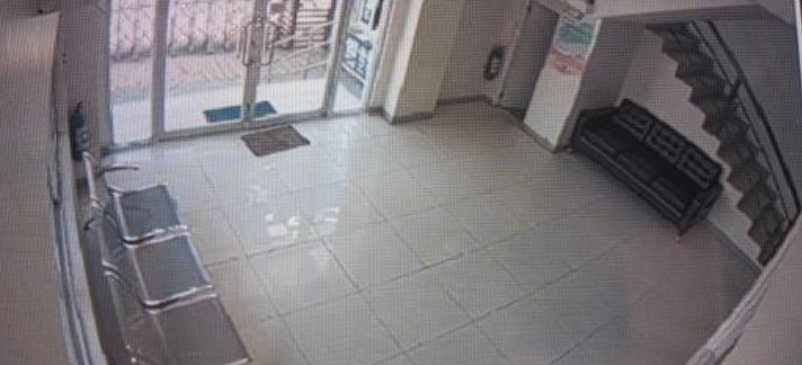

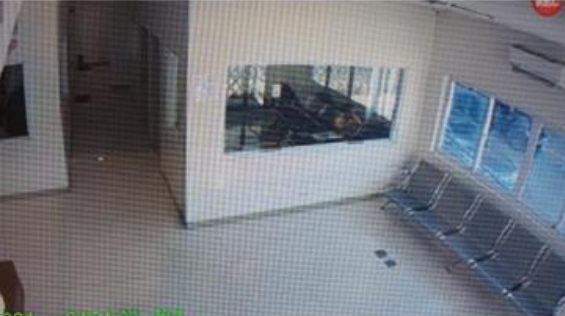

- Waiting Lounge

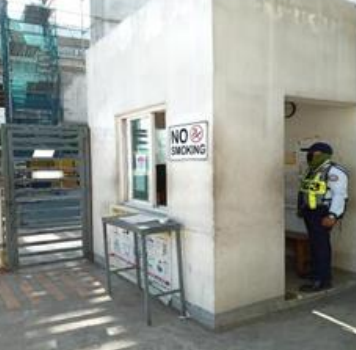

- Security Office
- Pantry

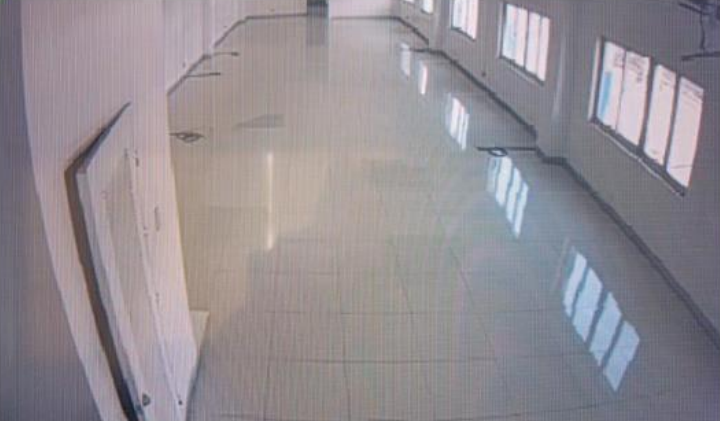

2nd Floor Mezzanine
- Conference Room
- Convertible for pharmaceutical storage
- Value-added services: kitting & bundling
3rd Floor
- Conference Room
- Convertible for pharmaceutical storage
- Value-added services: kitting & bundling
Lot Area
5,443 sqm
Floor Area
4,500 sqm
Protection
Security & Monitoring
24/7 on-site security and CCTV coverage with six-month file retention ensures your inventory is always protected.

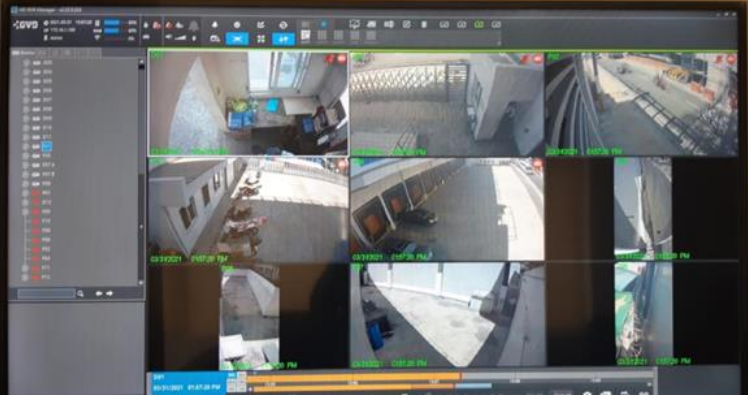

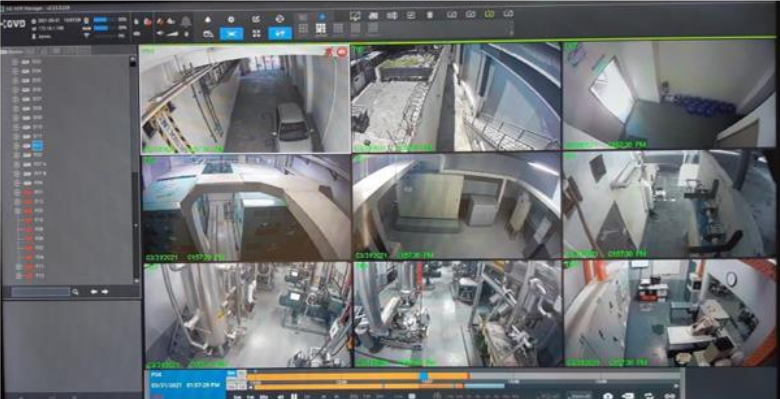

CCTV & WMS
- Full-coverage CCTV across all zones
- 6-month video file retention
- Remote access monitoring
- Controlled entry per cold room
- Cloud-based WMS — RF picking & barcode scanning
- FIFO/FEFO inventory management
On-Site Security
- 24/7 security personnel on duty
- Secure perimeter and access controls
- Incident response protocols
- Visitor and contractor log management
Gallery
Inside Our Facility
Get Started
Ready to Partner with Us?
Our team is ready to discuss your cold storage requirements and create a solution that works for your business.
